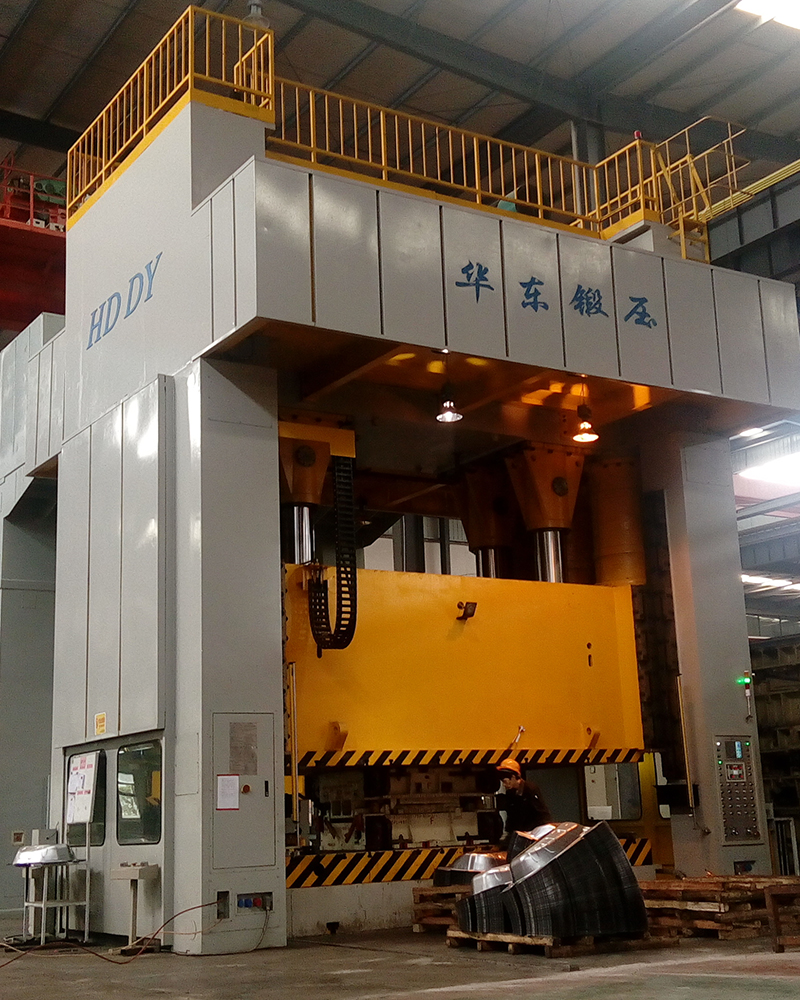

J39系列閉式四點單動機械壓力機
J39 series straight-side four point press
主要功能和特點:
Main Structure Features:
·全鋼板焊接分體式機身,由底座、立柱、橫梁三大件通過4根拉緊螺栓預緊成一體,橫梁與滑塊之間采用導柱導套方式過渡連接
Detachable steel welded frame with high rigidity, welded crown,column and bed are pretightened with tie rod bolt, transition connected by adopting guide pillar and bush between crown and slider
偏心齒輪軸式結構,滑塊行程大 ,承載能力強
It has eccentric gear spindle structure, which has large slider stroke and strong carryng capacity
四角超長導軌導向,保證運行精度
Eeight-face rectangle guide of slide ensures running accuracy
干式氣動分體式離合器、制動器,結合、制動力矩大,壽命長、低噪音、維修方便
Part revolusion pneumatic friction clutch and brake , with large braking torque, long service life, low noise and convenient for maintenance
液壓過載保護裝置,過載自動緊急停車,保護壓力機及模具的安全
Hydraulic overload protection device and overload automatic emergency stop, protect press and mold safety
稀油自動潤滑系統,具有油路報警功能
Automatic oil lubricating system, functioning of oil circuit alarm
PLC電氣集中控制,具有急停、寸動、單次、連續操作規范;帶觸摸屏顯示調整功能
PLC electrical centralized control, functioning of emergency stop,fine adjustment, single and continuous operational action; with functioning of touchscreen display and adjustment
裝模高度電動調節,數字及觸摸屏顯示
Electrical adjustment of die set height with digital and touchscreen display
可根據需要選配噸位儀、上模夾緊器 、減震墊、氣墊(可增加氣墊行程可調及閉鎖功能)等裝置。
Optional:tonnage,die holding device ,buffer and air cushion (air cushion stroke adjustable and closing function can be added)
型號 參數(Specification) |
JC39-500A |
JB39-630B |
JC39-630 |
JA39-800E |
JA39-800F |
JF39-1000 |
J39-1250 |
JF39-1600 |
JF39-2000 |
|||
公稱力(千牛) Nominal pressure(KN) |
5000 |
6300 |
6300 |
8000 |
8000 |
10000 |
12500 |
16000 |
20000 |
|||
公稱力行程(毫米) Nominal pressure stoke(mm) |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
13 |
|||
滑塊行程長度(毫米) Slide stroke(mm) |
700 |
700 |
800 |
800 |
800 |
850 |
800 |
800 |
800 |
|||
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
8-18 |
10-16 |
8-18 |
16 |
16 |
10-16 |
10-18 |
8-15 |
8-13 |
|||
微調行程次數(次/分鐘) Trimming strokes(spm) |
3-6 |
3-6 |
3-6 |
/ |
/ |
3-6 |
3-6 |
3-6 |
3-6 |
|||
最大裝模高度(毫米) Max. die height(mm) |
1200 |
1300 |
1600 |
1400 |
400 |
1350 |
1200 |
1400 |
1400 |
|||
裝模高度調節量(毫米) Die height adjustment(mm) |
600 |
600 |
700 |
600 |
600 |
600 |
600 |
600 |
600 |
|||
導軌間距離(毫米) Distance between gilbs(mm) |
4100 |
4100 |
4600 |
4710 |
5110 |
4610 |
5100 |
5600 |
5600 |
|||
滑塊尺寸(毫米) Slide area(mm) |
前后F.B |
2000 |
2200 |
2200 |
2500 |
2500 |
2200 |
2500 |
2600 |
2500 |
||
左右L.R |
4000 |
4000 |
4500 |
4600 |
5000 |
4500 |
5000 |
5500 |
5500 |
|||
工作臺板尺寸 (毫米) Bolster area(mm) |
前后F.B |
2000 |
2200 |
2200 |
2500 |
2500 |
2200 |
2500 |
2600 |
2500 |
||
左右L.R |
4000 |
4000 |
4500 |
4600 |
5000 |
4500 |
5000 |
5500 |
5500 |
|||
厚度TH |
260 |
260 |
280 |
300 |
320 |
300 |
300 |
320 |
350 |
|||
氣墊(Cushion) (選配) (Optional) |
數量(個) Qty(Piece) |
單頂冠 |
單頂冠 |
/ |
單頂冠 |
單頂冠 |
/ |
單頂冠 |
單頂冠 |
單頂冠 |
||
氣墊力(千牛) Capacity(KN) |
750 |
1200 |
/ |
1500 |
1500 |
/ |
2500 |
2000 |
3000 |
|||
行程(毫米) Stroke(mm) |
10-250 |
15-300 |
/ |
0-300 |
0-300 |
/ |
10-300 |
15-300 |
15-300 |
|||
工作臺移動方式 Move mode of the bolster |
前移 Forward |
左右移 L.R |
左右移 L.R |
右移 R |
左右移 L.R |
左右移 L.R |
前移 Forward |
前移 Forward |
前移 Forward |
|||
主電機功率(千瓦) Main motor power(KW) |
90 |
110 |
90 |
132 |
132 |
132 |
132 |
250 |
315 |
|||
電氣控制方式 Electrical control |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
|||
離合器形式 Shape of air clutch |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
|||
潤滑方式 Lubrication |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
稀油潤滑 Thin oil |
|||
壓機外形尺寸(毫米)Overal dimensions(mm) |
前后F.B |
5180 |
3700 |
4300 |
6000 |
6000 |
6700 |
6580 |
4400 |
4500 |
||
左右L.R |
6870 |
6030 |
6600 |
6750 |
7150 |
7570 |
8180 |
8500 |
8800 |
|||
壓機地面以上尺寸(毫米) Height above floor(mm) |
8250 |
8400 |
8900 |
10000 |
10000 |
10600 |
9600 |
10800 |
11200 |
|||
備注 (Remark) |
四立柱式 Four column |
四立柱式Four column |
四立柱式 Four column |
四立柱式 Four column |
四立柱式 Four column |
四立柱式Four column |
四立柱式 Four column |
四立柱式 Four column |
四立柱式 Four column |
