精密曲軸沖床
專業從事鍛壓設備及自動化的研發、生產、銷售,并為客戶提供個性化、多樣化、系統化服務的高新技術型企業Quick navigation
標準裝置 Standard Accessories |
電動黃油潤滑裝置 Electrical drive lubrication system |
液壓過載保護裝置 Hydraulic over-load protector |
電動式滑塊調整裝置 Automatic slide adjust device |
主電機 Main motor
|
曲軸角度指示器 Crank angle counter |
裝模高度顯示器 Die height indicator |
滑塊及模具平衡裝置 Balance device |
凸輪控制器或旋轉編碼器 Cam controller or rotary encoder |
模具照明燈 Working light 二度落保護裝置 Against over-run safety device 觸摸屏系統 Touch screen 可編程控器系統 PLC 移動式雙手按鈕操作站 Mobile two-handed operation station |
誤送檢知接口 Mis-feeder check-out port |
空氣源接頭 Compressed air connector |
空氣吹料接頭 Set blowing connector |
主電機逆轉裝置 Main motor reversing device |
組合式干式摩擦離合器 Combined dry friction clutch |
防震墊腳 Adjusting shockproof pad |
標準裝置 Standard Accessories |
電動黃油潤滑裝置 Electrical drive lubrication system |
液壓過載保護裝置 Hydraulic over-load protector |
電動式滑塊調整裝置 Automatic slide adjust device |
主電機 Main motor
|
曲軸角度指示器 Crank angle counter |
裝模高度顯示器 Die height indicator |
滑塊及模具平衡裝置 Balance device |
凸輪控制器或旋轉編碼器 Cam controller or rotary encoder |
模具照明燈 Working light 二度落保護裝置 Against over-run safety device 觸摸屏系統 Touch screen 可編程控器系統 PLC 移動式雙手按鈕操作站 Mobile two-handed operation station |
誤送檢知接口 Mis-feeder check-out port |
空氣源接頭 Compressed air connector |
空氣吹料接頭 Set blowing connector |
主電機逆轉裝置 Main motor reversing device |
組合式干式摩擦離合器 Combined dry friction clutch |
防震墊腳 Adjusting shockproof pad
|

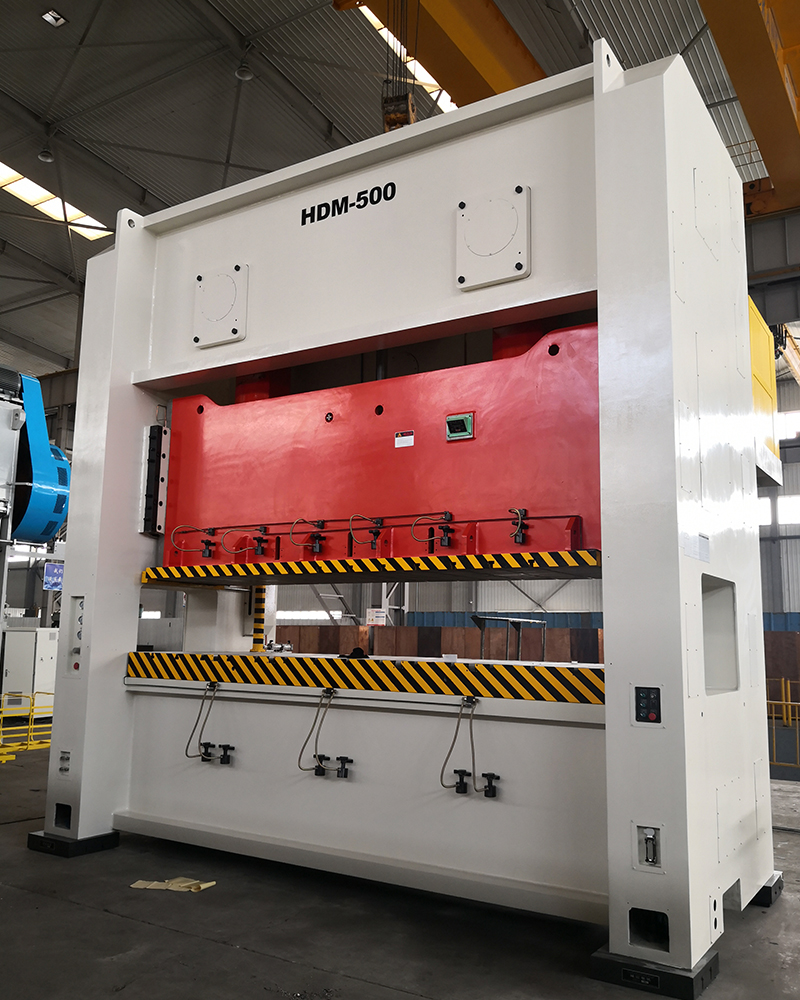

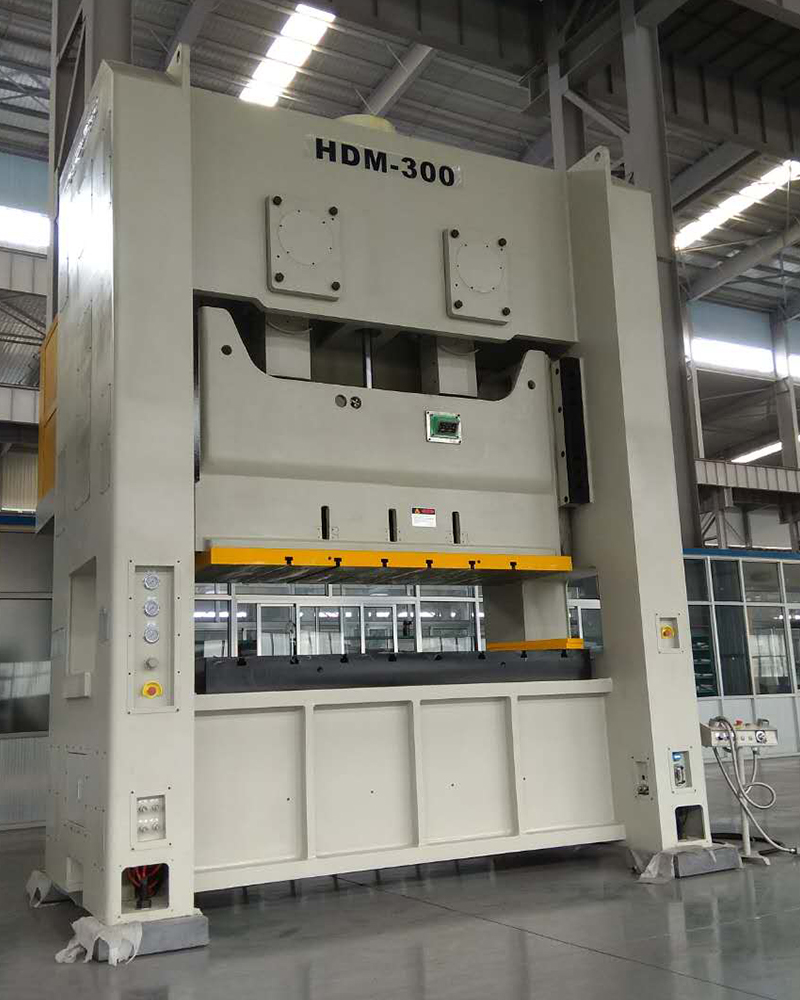

規格 Specification | HDM-160 | HDM-200 | HDM-250 | HDM-300 | HDM-400 | HDM-500 | HDM-600 | ||||
形式 Model | V | H | V | H | V | H | V | H | V | V | V |
AA | 2590 | 3000 | 3600 | 3600 | 3800 | 4500 | 5100 | ||||
AB | 2240 | 2650 | 3250 | 3250 | 3450 | 4050 | 4650 | ||||
AC | 1800 | 2200 | 2500 | 2500 | 2700 | 3400 | 4000 | ||||
AD | 1880 | 2290 | 2800 | 2800 | 300 | 3600 | 4200 | ||||
AE | 1600 | 1850 | 2400 | 2400 | 2700 | 3200 | 3700 | ||||
BA | 1450 | 1600 | 1870 | 1870 | 2100 | 2325 | 2625 | ||||
BB | 1290 | 1440 | 1710 | 1710 | 1940 | 1925 | 2265 | ||||
BC | 700 | 900 | 900 | 900 | 900 | 1000 | 1100 | ||||
BD | 2309 | 2523 | 2995 | 2995 | 3129 | 3650 | 3955 | ||||
BE | 490 | 620 | 770 | 770 | 770 | 700 | 820 | ||||
HA | 1000 | 1000 | 1100 | 1200 | 1200 | 1250 | 1700 | ||||
HB | 450 | 400 | 500 | 450 | 550 | 450 | 550 | 450 | 550 | 600 | 600 |
HC | 180 | 130 | 250 | 150 | 280 | 170 | 300 | 170 | 300 | 300 | 300 |
HD | 3757 | 3682 | 4015 | 3915 | 4593 | 4438 | 4903 | 4729 | 5257 | 5281 | 5971 |
HE | 950 | 950 | 1050 | 1150 | 1150 | 1150 | 1655 | ||||
HF | 450 | 600 | 600 | 600 | 600 | 700 | 700 | ||||
HG | 1730 | 1655 | 1910 | 1810 | 2081 | 1926 | 2296 | 2131 | 3495 | 2765 | 3450 |
