開式單點壓力機
專業從事鍛壓設備及自動化的研發、生產、銷售,并為客戶提供個性化、多樣化、系統化服務的高新技術型企業Quick navigation

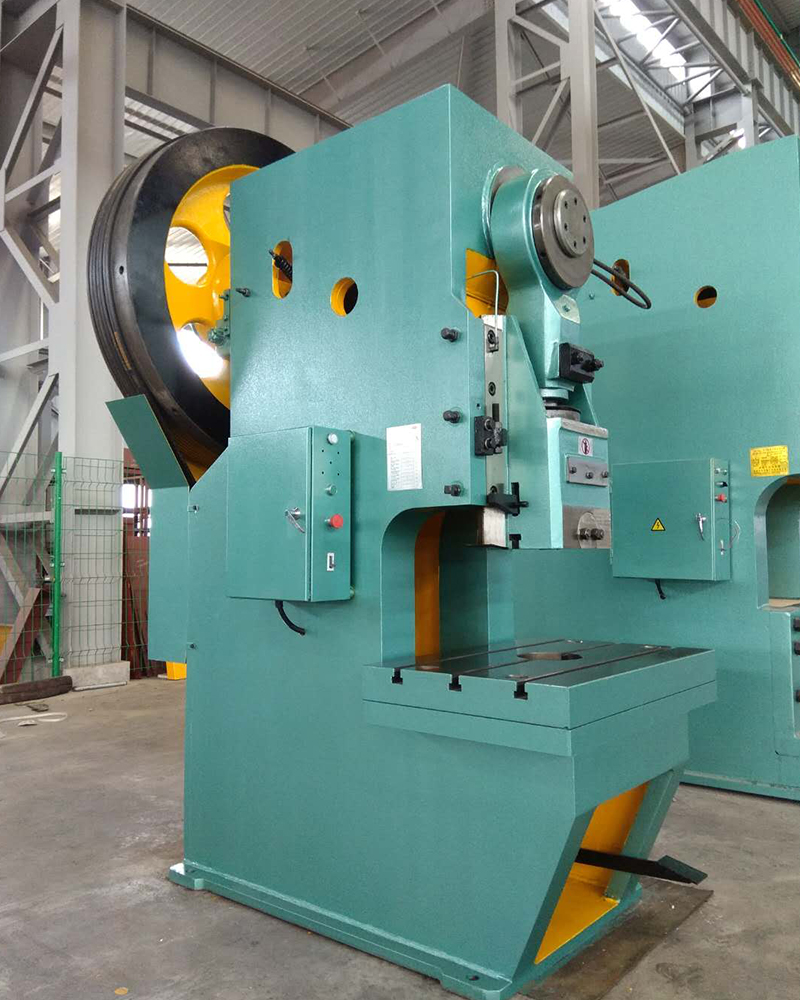

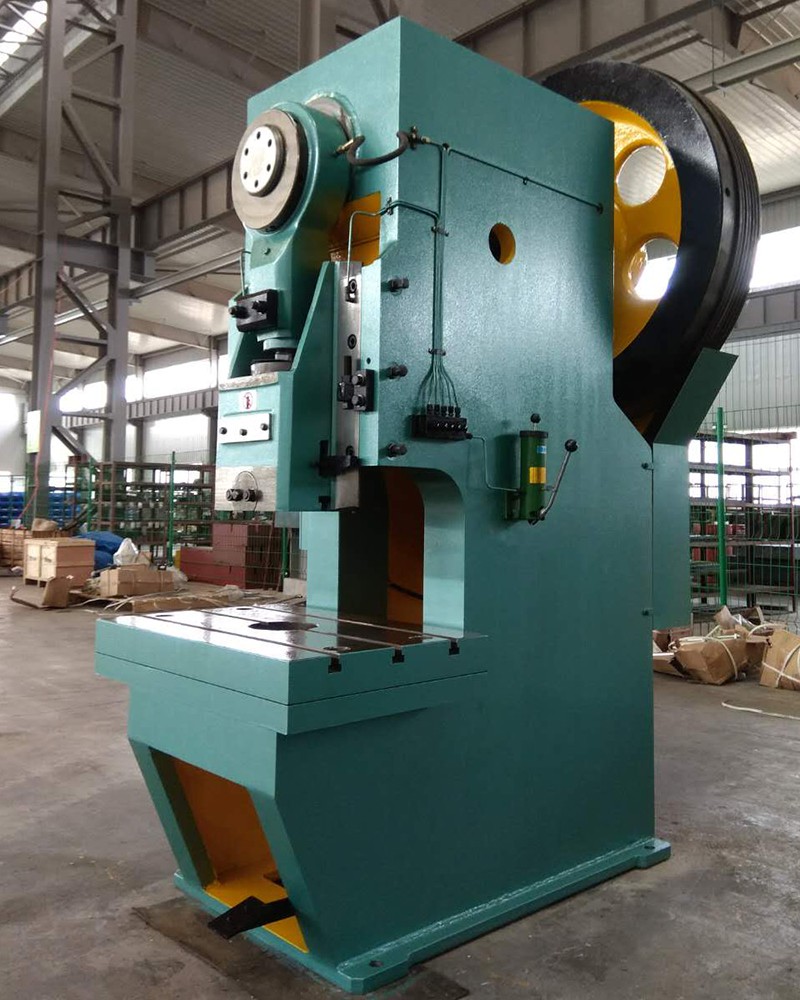

J21系列開式固定臺壓力機(普通型)
J21 series open-side fixed table press(positive clutch)
主要功能和特點:
Main functions and characteristics:
采用鋼板焊接機身
Machine body is welded by steel plate
剛性轉鍵式離合器,帶式制動器
It is equipped with rigid rotating key clutch and band brakes
壓塌塊式過載保護裝置
It is equipped with breaker overload protective unit
手動濃油集中潤滑
It is collectively lubricated by manually-operated concentrated oil
裝模高度人工手動調節,刻度尺顯示
It has manually adjusted die height, which is shown in scale size
結構簡單、直觀,方便維修
It has simple and intuitive structure for convenient maintenance
型號(type) 參數(Specification) |
JF21-40 |
J21-63A |
JD21-80A |
JB21-100B |
JD21-100 |
JD21-125 |
JB21-160B |
|
公稱力(千牛) Nominal pressure(KN) |
400 |
630 |
800 |
1000 |
1000 |
1250 |
1600 |
|
公稱力行程(毫米) Nominal pressure stoke(mm) |
6 |
8 |
8 |
8 |
8 |
8 |
10 |
|
滑塊行程長度(毫米) Slide stroke(mm) |
80 |
120 |
120 |
20/100 |
140 |
160 |
40/160 |
|
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
45 |
55 |
55 |
70 |
40 |
40 |
42 |
|
最大裝模高度(毫米) Max. die height(mm) |
265 |
255 |
280 |
300 |
300 |
320 |
330 |
|
裝模高度調節量(毫米) Die height adjustment(mm) |
65 |
90 |
80 |
85 |
100 |
100 |
120 |
|
立柱間距離(毫米) The distance between the columns(mm) |
340 |
390 |
360 |
380 |
420 |
400 |
540 |
|
喉口深度(毫米) Throat depth(mm) |
250 |
260 |
290 |
325 |
320 |
350 |
380 |
|
滑塊底面尺寸(毫米) Slide bottom area(mm) |
前后F.B |
260 |
280 |
300 |
260 |
310 |
325 |
370 |
左右L.R |
300 |
320 |
340 |
335 |
365 |
385 |
510 |
|
工作臺板尺寸(毫米) Bolster area(mm) |
前后F.B |
460 |
480 |
540 |
600 |
600 |
650 |
710 |
左右L.R |
700 |
710 |
800 |
900 |
900 |
950 |
1120 |
|
厚度TH |
65 |
90 |
90 |
90 |
90 |
100 |
120 |
|
模柄孔尺寸 (毫米) Mold handle hole size(mm) |
直徑d |
Ф50 |
Ф50 |
Ф50 |
Ф50 |
Ф50 |
Ф50 |
Ф80 |
深度D |
70 |
60 |
85 |
80 |
80 |
80 |
80 |
|
主電機功率(千瓦) Main motor power(KW) |
5.5 |
7.5 |
7.5 |
7.5 |
7.5 |
11 |
15 |
|
離合器形式 Shape of air clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
剛性離合器 Rigid Clutch |
|
壓機外形尺寸(毫米)Overal dimensions(mm) |
前后F.B |
1685 |
1750 |
1815 |
1828 |
1950 |
2010 |
2235 |
左右L.R |
1330 |
1362 |
1540 |
1270 |
1610 |
1610 |
1340 |
|
壓機地面以上尺寸(毫米) Height above floor(mm) |
2220 |
2490 |
2565 |
2630 |
2680 |
2800 |
3082 |
