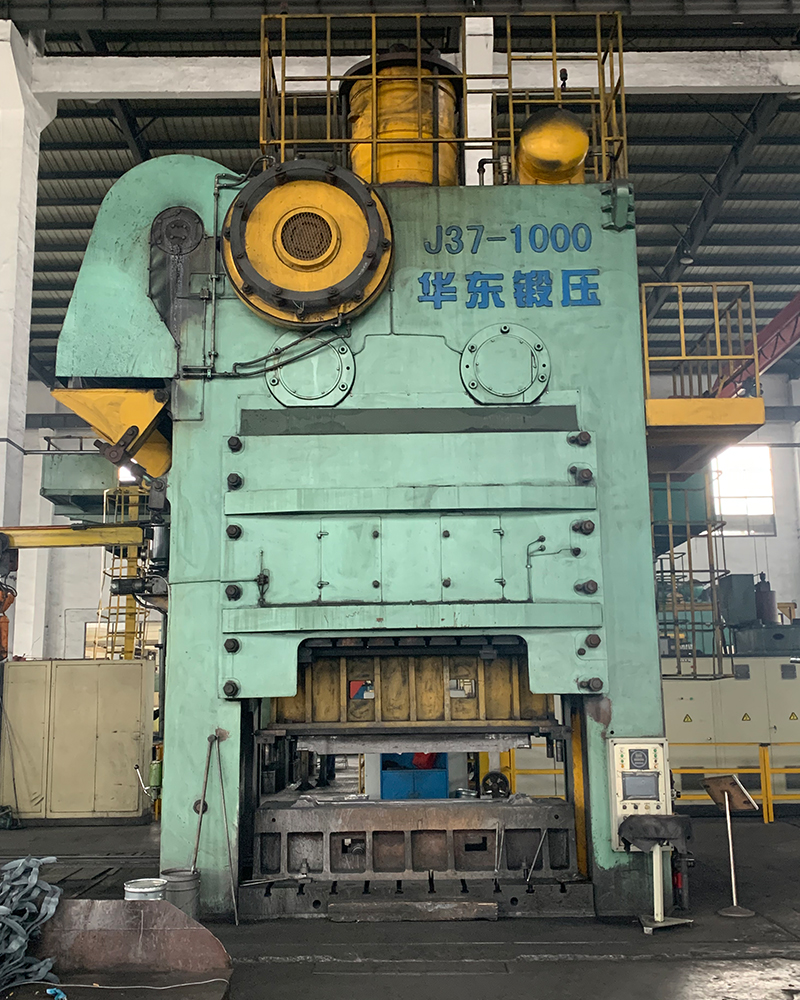

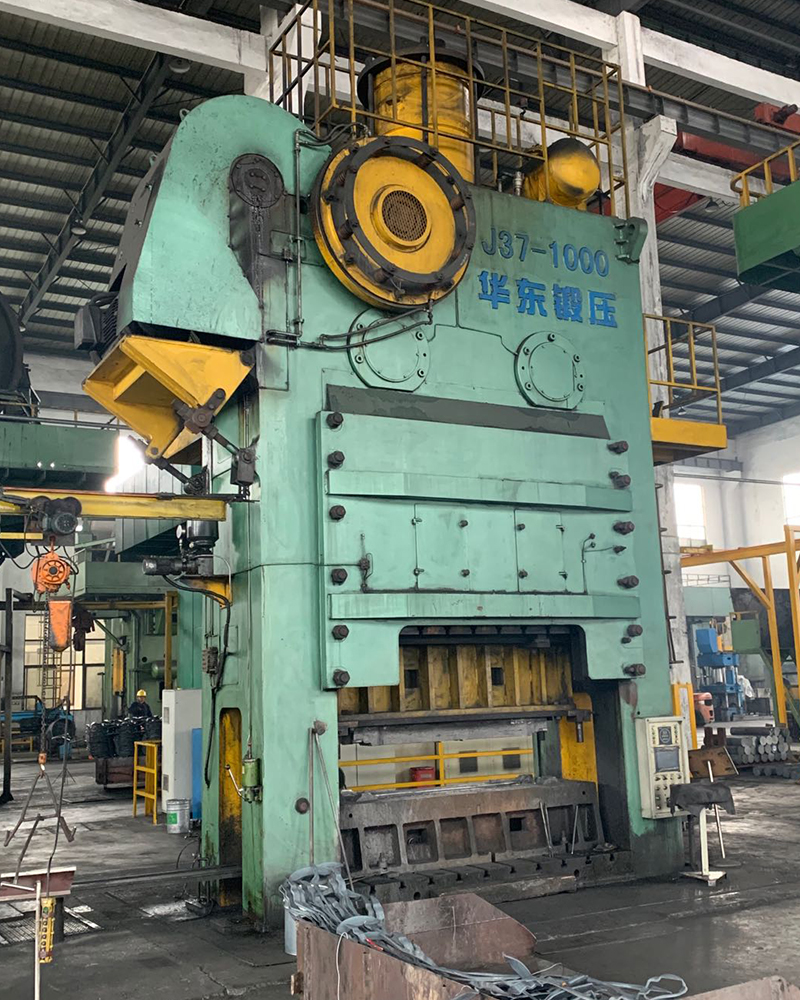

J37系列閉式雙點切邊機械壓力機
J37 series straight-side two point trimming press
主要功能和特點:
Main Structure Features:
全鋼板整體焊接機身 ,具有足夠的強度與剛度
Overall steel welded body, with sufficient strength and rigidity
傳動系統 :三級傳動,其中兩級為人字齒輪傳動,兩個曲軸縱放
Drive system: three-stage drive, among which two-stage is herringbone gear drive, with two front-back crankshafts
采用干式氣動浮動鑲塊式離合器與制動器 (分體式〉 , 安全、可靠、壽命長
Adopts dry pneumatic floating sectional clutch and brake (detachable), which is safe, reliable and long service life
滑塊由銹鋼整體澆洼而成,裝模高度調節采用機動形式
Slider is constructed of stainless steel body, and die set height adjustment adopts motor-driven mode
電氣系統采用PLC集中控制
Electrical system adopts PLC centralized control
型號(type) 參數(Specification) |
J37-315 |
J37-500 |
J37-630 |
J37-800 |
J37-1000 |
J37-1250 |
J37-1600 |
|
公稱力(千牛) Nominal pressure(KN) |
3150 |
5000 |
6300 |
8000 |
10000 |
12500 |
16000 |
|
公稱力行程(毫米) Nominal pressure stoke(mm) |
16 |
16 |
16 |
16 |
16 |
13 |
13 |
|
滑塊行程長度(毫米) Slide stroke(mm) |
200 |
240 |
300 |
400 |
450 |
500 |
600 |
|
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
45 |
40 |
40 |
30 |
26 |
26 |
18 |
|
最大裝模高度(毫米) Max. die height(mm) |
530 |
580 |
670 |
750 |
1400 |
1200 |
1400 |
|
裝模高度調節量(毫米) Die height adjustment(mm) |
125 |
150 |
150 |
175 |
200 |
200 |
200 |
|
滑塊底面尺寸 (毫米) Slider bottom size(mm) |
前后F.B |
950 |
1000 |
1125 |
1160 |
1400 |
1400 |
1700 |
左右L.R |
1380 |
1580 |
1780 |
2030 |
2700 |
2770 |
3400 |
|
工作臺板尺寸 (毫米) Bolster area(mm) |
前后F.B |
1020 |
1100 |
1180 |
1250 |
1400 |
1400 |
1800 |
左右L.R |
1400 |
1600 |
1800 |
2050 |
2700 |
2770 |
3400 |
|
主電機功率(千瓦) Main motor power(KW) |
30 |
45 |
55 |
75 |
110 |
132 |
160 |
|
電氣控制方式 Electrical control |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
PLC |
|
離合器形式 Shape of air clutch |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
氣動、分體 Spilt type |
|
壓機外形尺寸 (毫米) Overal dimensions(mm) |
前后F.B |
1700 |
2000 |
2350 |
2600 |
3145 |
3500 |
4000 |
左右L.R |
2020 |
2300 |
2430 |
4085 |
6070 |
6300 |
7100 |
|
壓機地面以上尺寸(毫米) Height above floor(mm) |
4560 |
4900 |
5650 |
6150 |
8000 |
8100 |
8600 |
