閉式鍛造壓力機
專業從事鍛壓設備及自動化的研發、生產、銷售,并為客戶提供個性化、多樣化、系統化服務的高新技術型企業Quick navigation

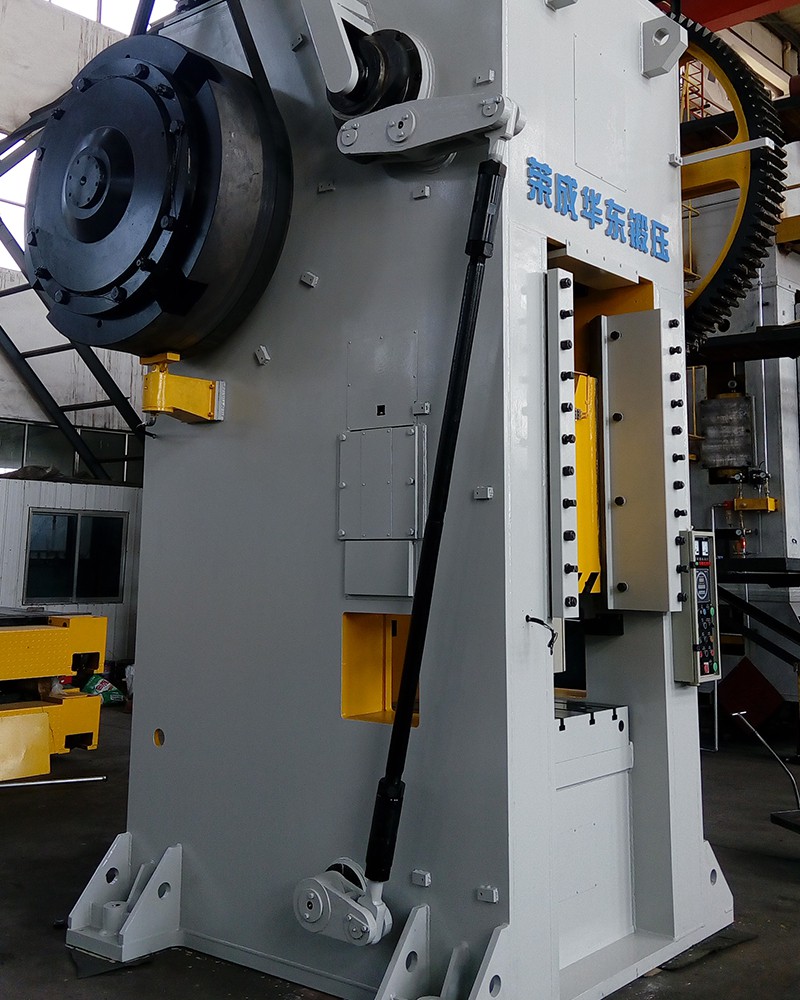

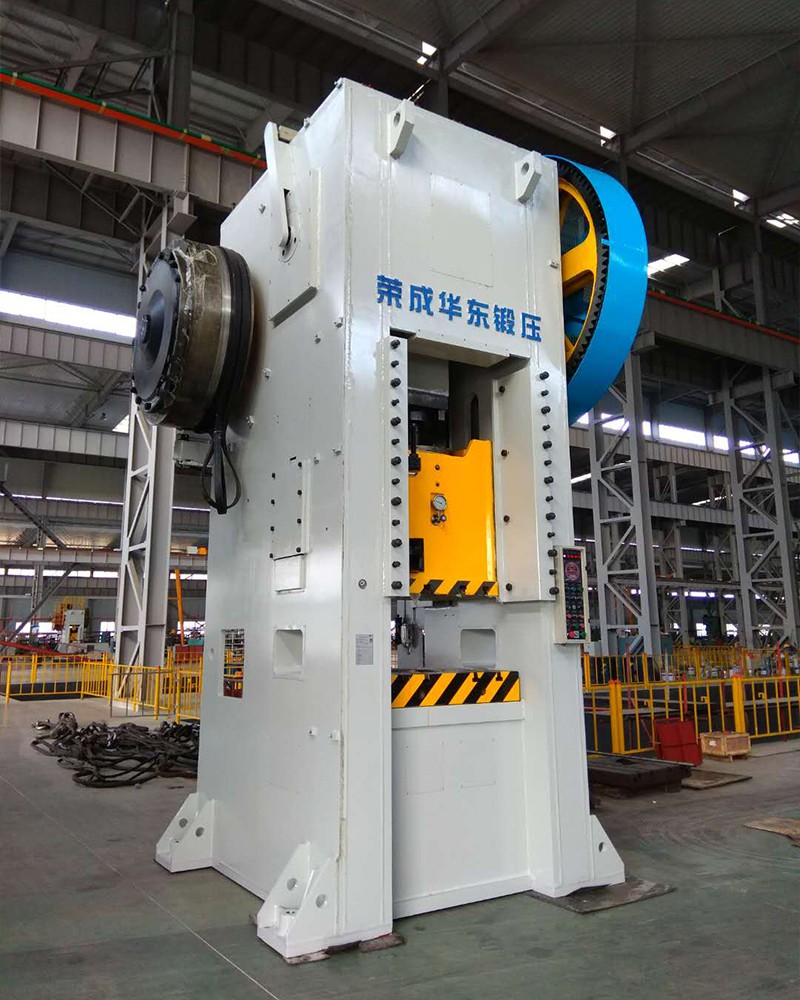

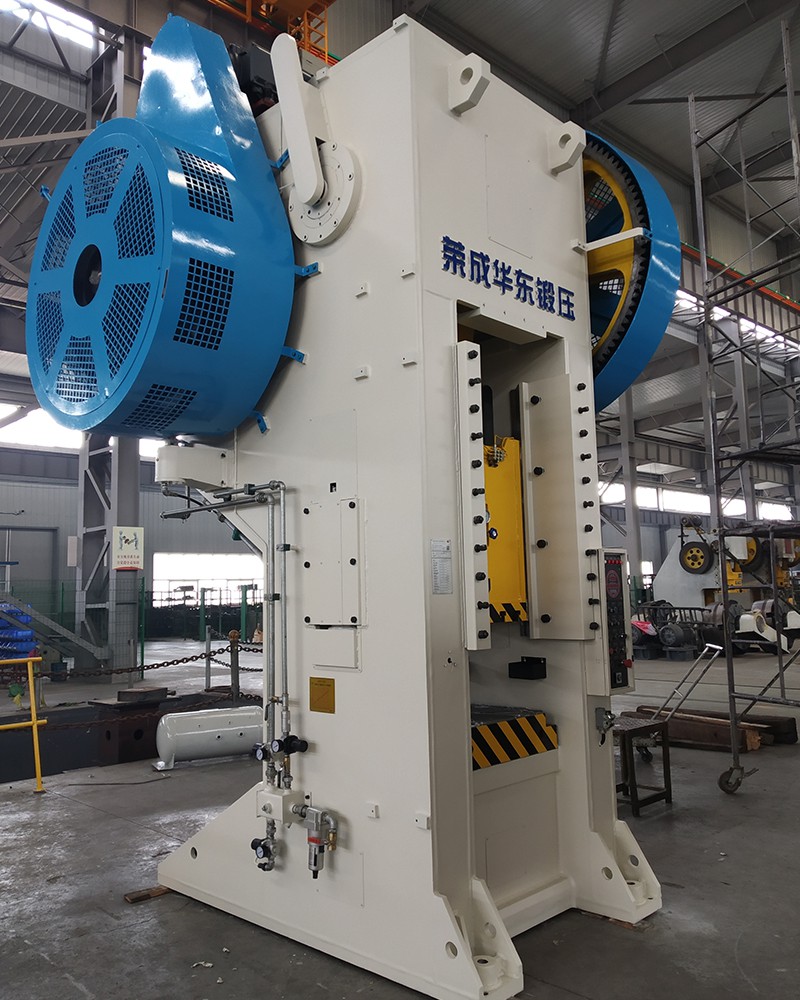

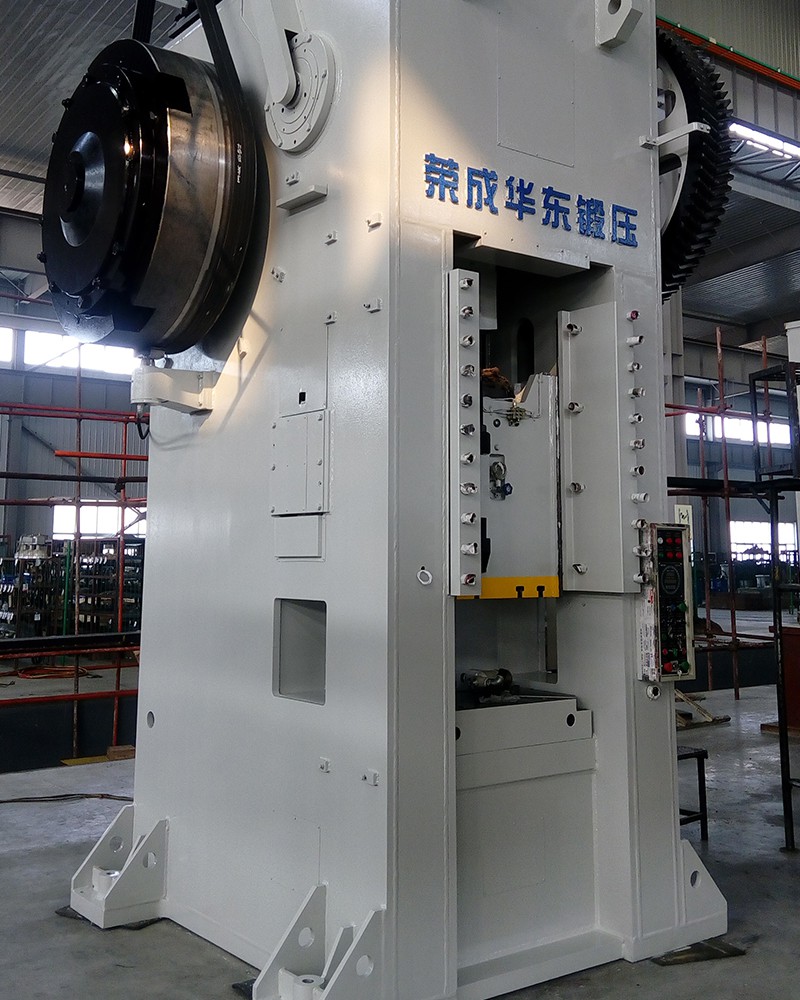

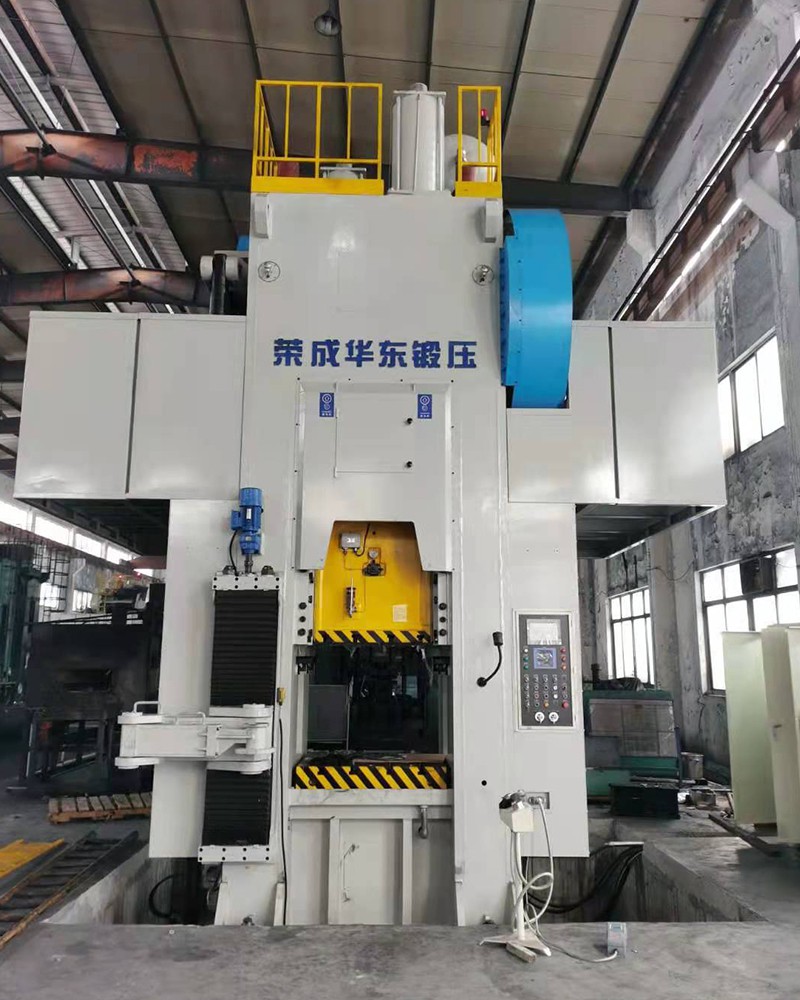

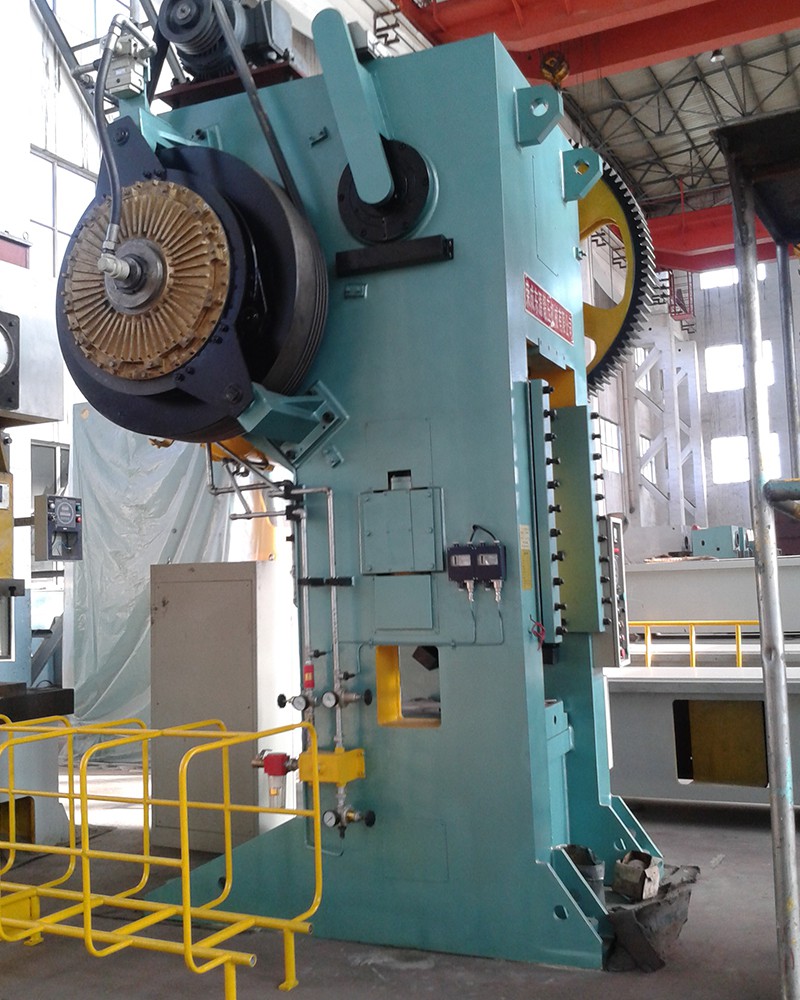

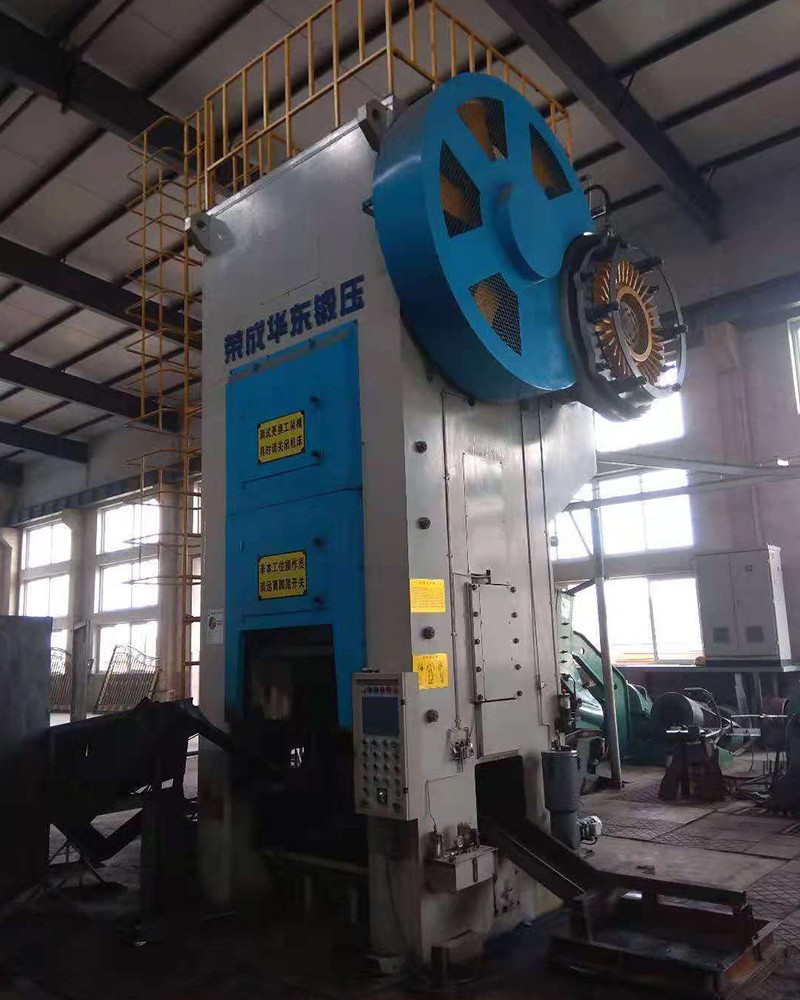

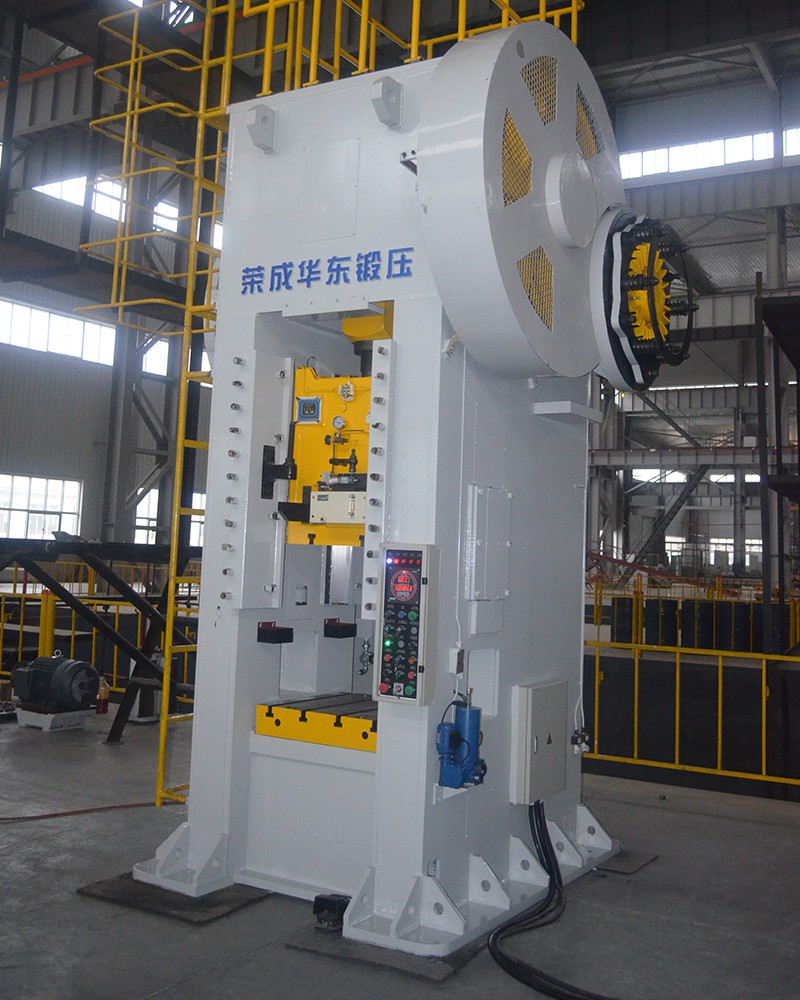

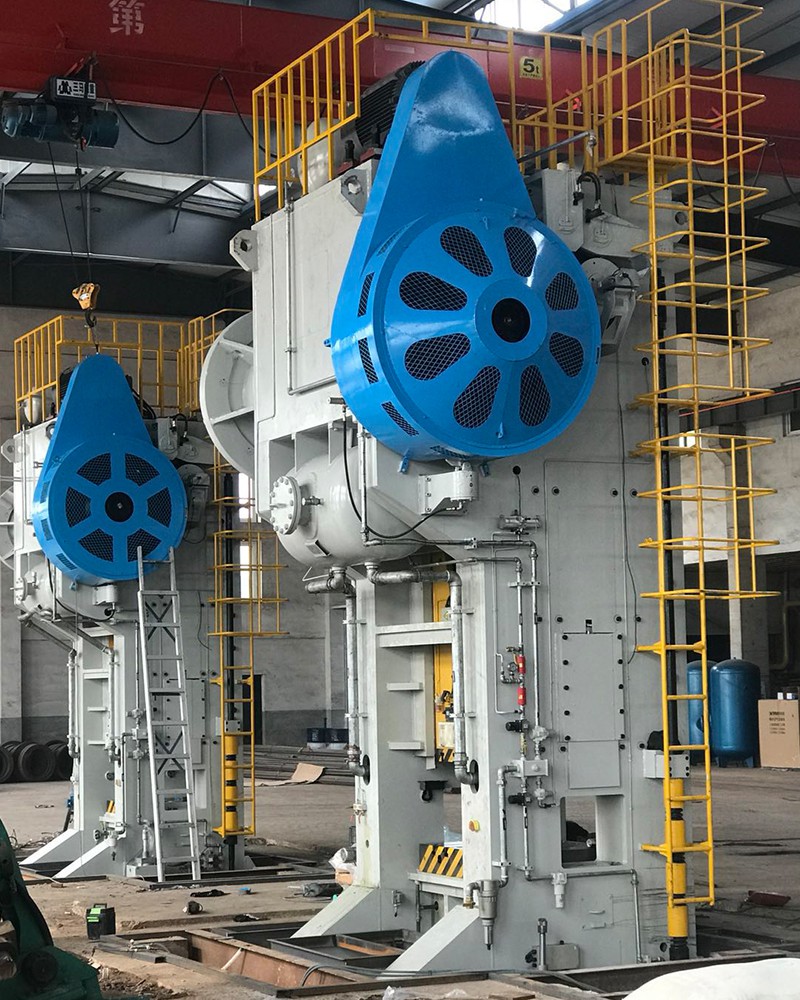

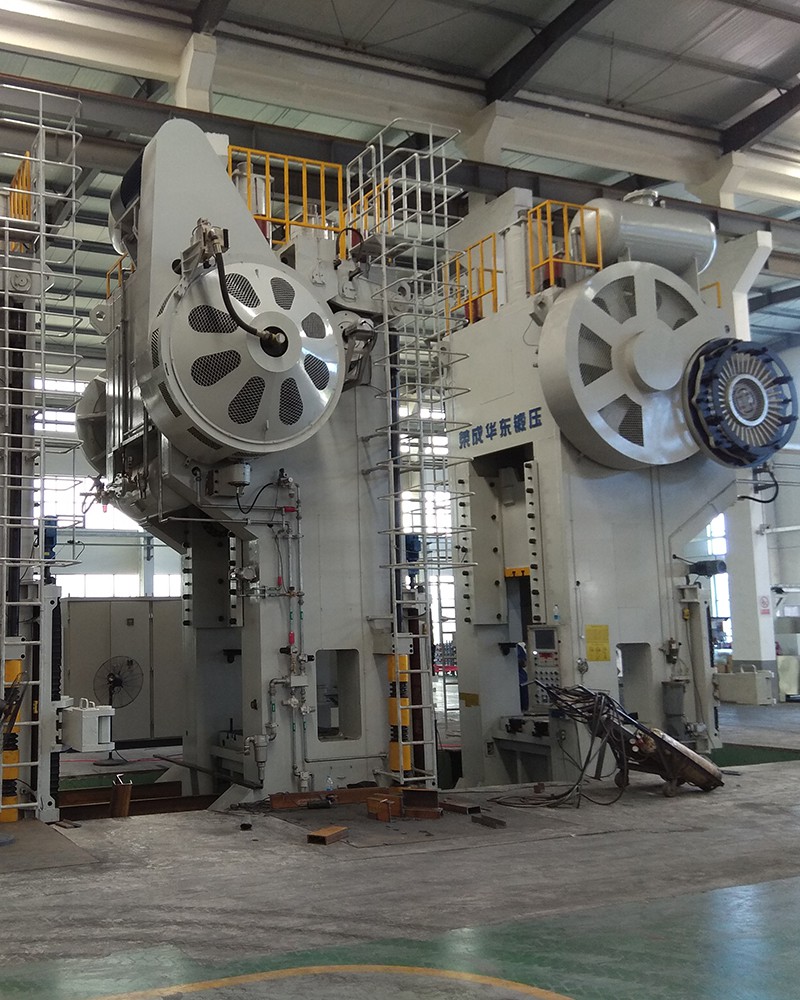

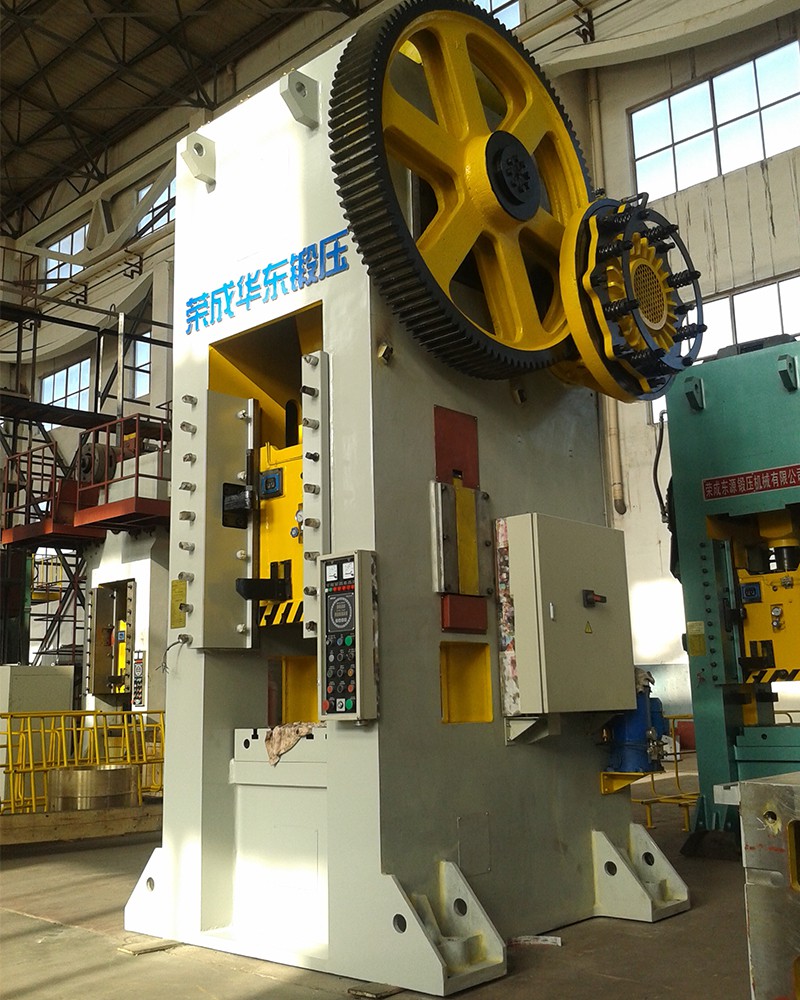

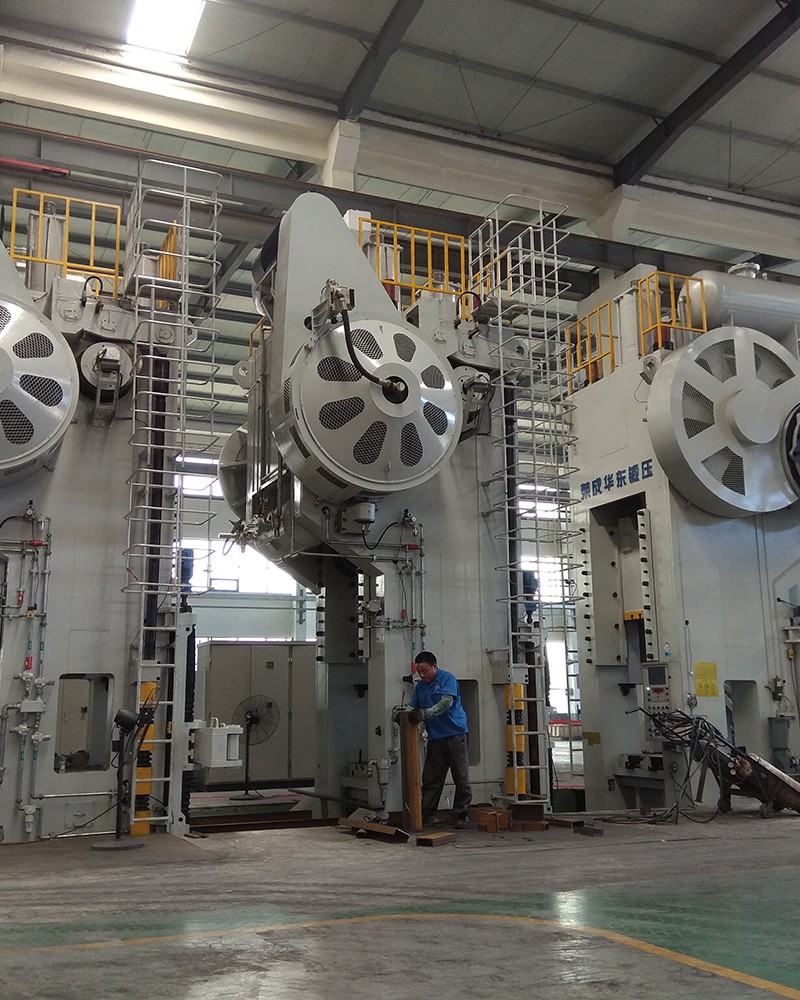

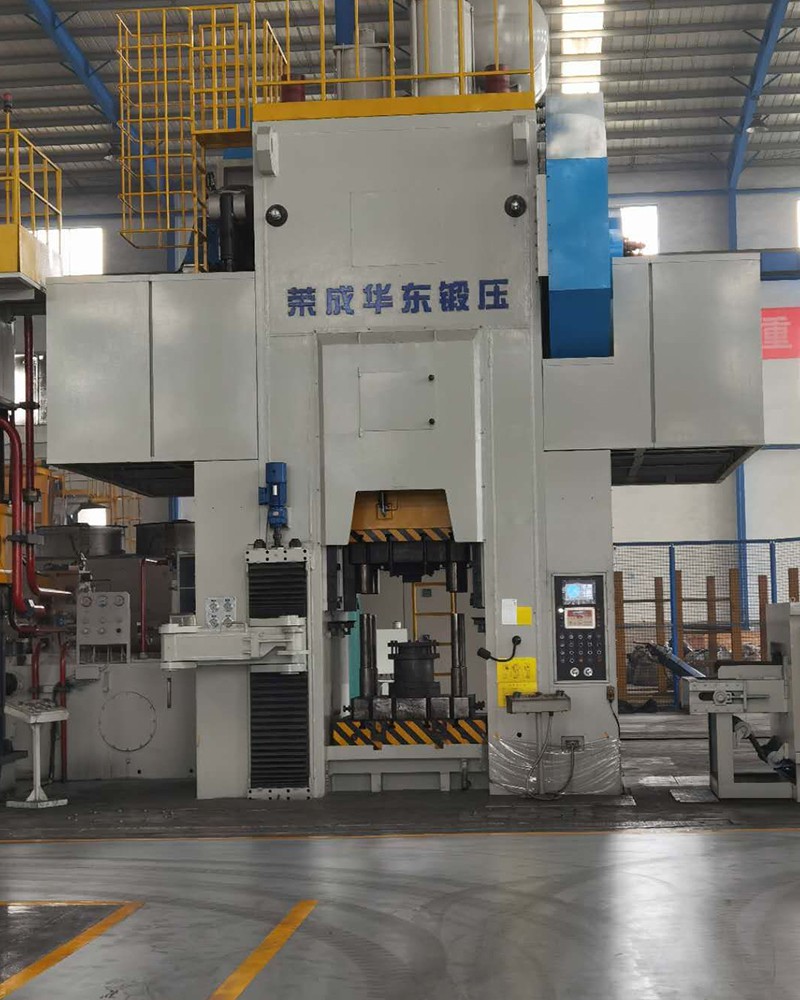

MPA系列熱模鍛壓力機
MPA series hot die forging press
主要功能和特點:
Main functions and characteristics:
在傳統MP熱模鍛壓力機的基礎上進行了改進完善,增大了公稱力行程,擴大了壓力機的使用范圍
Improved on the basis of traditional MP hot die press to increase nominal stroke and expand scope of use for press
機架采用整體實心結構的銹鋼或鋼板焊接件
Frame adopts monolithic solid structured stainless steel or steel plate weldment
超高精度和超高剛度,可以實現鍛件的精密閉式模鍛
Super high precision and super high rigidity ensures precision closed type die forging of forge piece
機身兩側設有側窗口,方便橫向送料,可實現金自動鍛造工藝
Bilateral side of body is equipped with lateral window to make it convenient for cross feeder and automatic forging process can be achieved
滑塊導軌采用X型結構,有效地避免溫度對機床導向精度的影響
X type structure adopted by slider guide effectively avoids influence of temperature to accuracy of machine tool guidance
干式氣動摩擦離合器,制動器設有水冷系統
Dry pneumatic friction clutch, brake is equipped with water cooling system
設上、下頂料裝置,減小了拔模斜度,節省原材料消耗
Up and down jigger mechanism equipped reduces pattern draft and save raw material consumption
配置了噸位監控系統、集中潤滑及潤滑監控系統、軸承溫度監控系統等
Tonnage monitoring system, centralized lubrication and lubrication monitoring system, bearing temperature monitoring system are equipped
型號
參數(Specification) |
MPA630 |
MPA1000 |
MPA1600 |
MPA2000 |
MPA2500 |
MPA3150 |
MPA4000 |
|
公稱力(千牛) Nominal pressure(KN) |
6300 |
10000 |
16000 |
20000 |
25000 |
31500 |
40000 |
|
滑塊行程長度(毫米) Slide stroke(mm) |
220 |
250 |
280 |
300 |
320 |
340 |
360 |
|
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
110 |
100 |
90 |
85 |
80 |
60 |
55 |
|
最大裝模高度(毫米) Max. die height(mm) |
630 |
700 |
875 |
950 |
1000 |
1050 |
1110 |
|
裝模高度調節量(毫米) Die height adjustment(mm) |
11 |
14 |
18 |
20 |
22.5 |
25 |
28 |
|
滑塊底面尺寸 (毫米) Slider bottom size(mm) |
前后F.B |
700 |
930 |
1140 |
1260 |
1380 |
1540 |
1710 |
左右L.R |
670 |
820 |
1030 |
1180 |
1260 |
1360 |
1460 |
|
工作臺板尺寸 (毫米) Bolster area(mm) |
前后F.B |
920 |
1120 |
1400 |
1530 |
1700 |
1860 |
2050 |
左右L.R |
690 |
850 |
1050 |
1210 |
1300 |
1400 |
1500 |
|
主電機功率(千瓦) Main motor power(KW) |
55 |
75 |
75 |
132 |
160 |
200 |
250 |
|
壓機外形尺寸 (毫米) Overal dimensions(mm) |
前后F.B |
2700 |
3050 |
3300 |
3450 |
4700 |
4100 |
4450 |
左右L.R |
3700 |
4100 |
4800 |
4900 |
5280 |
5800 |
6100 |
|
壓機地面以上尺寸(毫米) Height above floor(mm) |
4800 |
5100 |
6100 |
6400 |
7075 |
7400 |
7800 |
