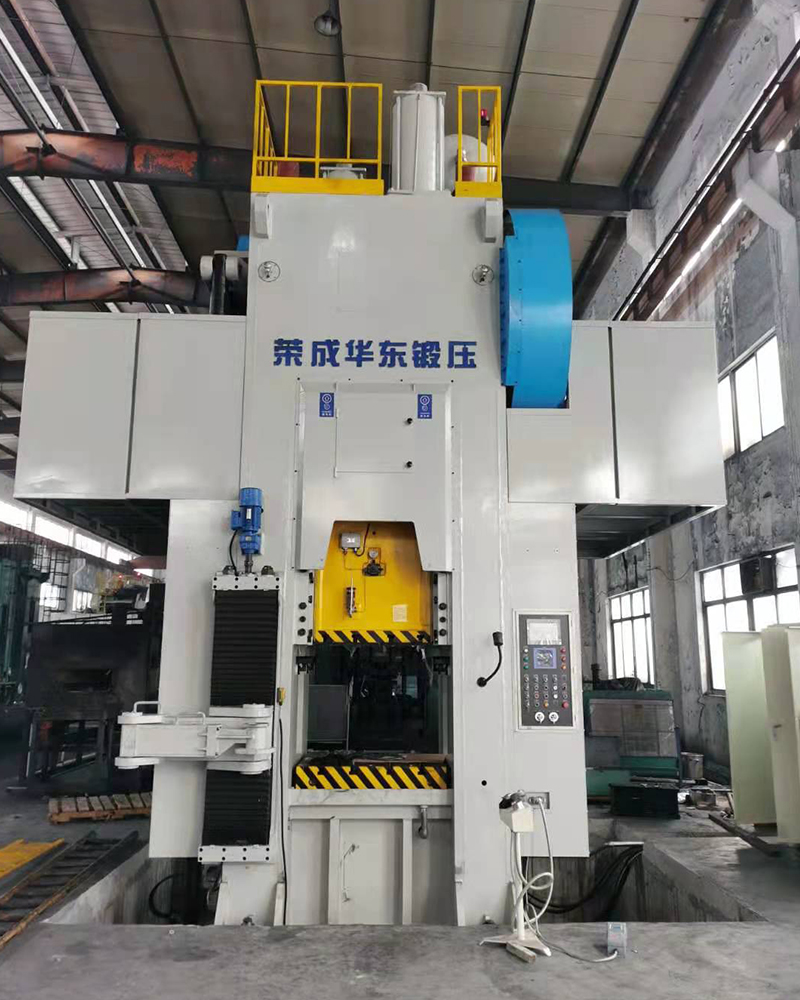

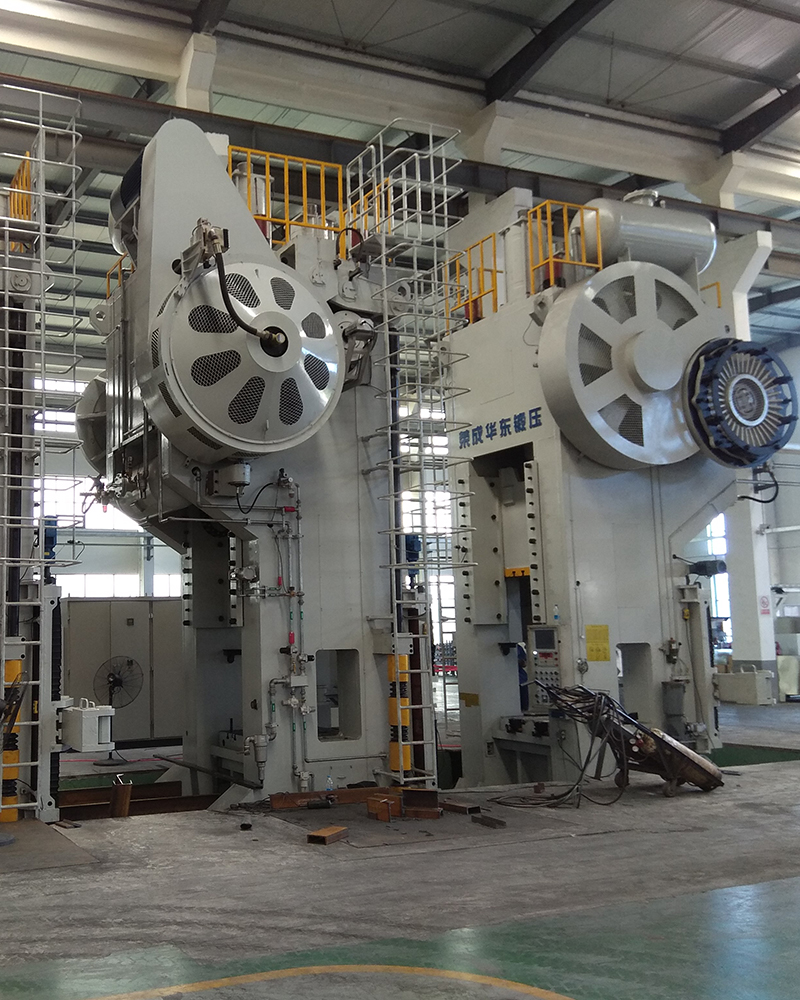

JWD31系列長行程溫鍛壓力機
JWD31 series long stroke warm forging press
主要功能和特點:
Main Structure Features:
采用整體鋼板焊接機身,保證機床有足夠高的剛度
Entire plate is welded to press frame, ensuring sufficient rigidness of it
傳動系統采用兩級或三級傳動,曲軸偏心式結構
It has a two-stage or three-stage driving system with a crankshaft eccentric center structure
采用分體式干式氣動摩擦離合器,慣量小、溫升低、壽命長、維修方便
Split dry pneumatic friction clutch is applied, characterized by small inertia, little temperature rise, long service life and easy maintenance
整機剛度相比普通鍛造壓機有大幅的提高,滑塊行程大,公稱力行程大,適合各種溫鍛零件的鍛造
Compared with regular forging press, the rigidness of press has been greatly improved, with large stroke of cam block and nominal pressure, suitable for forging all kinds of warm forging parts
具有長行程和高剛度的機械下頂料裝置,特別適合長的“杯桿”形零件的鍛造,例如等速萬向聯軸節的溫鍛
Mechanical below feeding device long stroke, high stiffness, very suitable for long "cup" shaped parts forging, for example, constant temperature universal joint warm forging.
主電機采用變頻調速電機,以合適的滑塊速度進行鍛造,同時為低速調模提供了方便
Main electric machine uses electric machine of frequency control of motor speed, forged with suitable cam block speed, providing convenience for adjusting mold
滑塊運動精度高,具有解悶車功能
Cam block moves in high precision, with function of dismissing shutdown
濃油強制自動定時定量潤滑系統,保證機床有充足的潤滑
Concentrated oil gives mandatory automatic lubrication to system regularly and in fixed quantity, guaranteeing sufficient lubrication to machine tool
整機采用PLC集中控制,設有噸位儀、軸溫檢測等多種安全措施,保障壓力機的運行安全
Entire press is under centralized control of PLC, with multiple safety measures of tonnage meter and axis temperature testing, ensuring operation safety of the press
型號
參數(Specification) |
JWD31-400 |
JWD31-500 |
JWD31-630 |
JWD31-800 |
JWD31-1000B |
|
公稱力(千牛) Nominal pressure(KN) |
4000 |
5000 |
6300 |
8000 |
10000 |
|
公稱力行程(毫米) Nominal pressure stoke(mm) |
10 |
10 |
10 |
10 |
8 |
|
滑塊行程長度(毫米) Slide stroke(mm) |
400 |
450 |
500 |
500 |
500 |
|
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
24~32 |
24~32 |
22~30 |
22~30 |
22~30 |
|
最大裝模高度(毫米) Max. die height(mm) |
750 |
900 |
1000 |
1100 |
1050 |
|
裝模高度調節量(毫米) Die height adjustment(mm) |
120 |
120 |
120 |
120 |
120 |
|
導軌間距離(毫米) Distance between gilbs(mm) |
710 |
760 |
810 |
910 |
1010 |
|
滑塊底面尺寸 (毫米) Slider bottom size(mm) |
前后F.B |
700 |
800 |
850 |
900 |
950 |
左右L.R |
900 |
950 |
1000 |
1100 |
1200 |
|
工作臺板尺寸 (毫米) Bolster area(mm) |
前后F.B |
900 |
950 |
1000 |
1100 |
1200 |
左右L.R |
900 |
950 |
1000 |
1100 |
1200 |
|
上頂料 downward ejector |
行程(毫米) stroke(mm) |
35 |
40 |
50 |
60 |
/ |
頂料力(千牛) Power(KN) |
40 |
50 |
60 |
80 |
/ |
|
下頂料(機械) Upward ejector (mechanical) |
行程(毫米) stroke(mm) |
80 |
110 |
130 |
130 |
130 |
頂料力(千牛) Power(KN) |
300 |
400 |
550 |
700 |
800 |
|
主電機功率(千瓦) Main motor power(KW) |
45 |
55 |
75 |
90 |
110 |
|
壓機外形尺寸 (毫米) Overal dimensions(mm) |
前后F.B |
2710 |
2850 |
2995 |
3150 |
3990 |
左右L.R |
3270 |
3550 |
3985 |
4220 |
5810 |
|
壓機地面以上尺寸(毫米) Height above floor(mm) |
5480 |
5750 |
6100 |
6450 |
6960 |
型號
參數(Specification) |
JWD31-1000 |
JWD31-1250 |
JWD31-1600 |
JWD31-2000 |
|
公稱力(千牛) Nominal pressure(KN) |
10000 |
12500 |
16000 |
20000 |
|
公稱力行程(毫米) Nominal pressure stoke(mm) |
8 |
8 |
8 |
8 |
|
滑塊行程長度(毫米) Slide stroke(mm) |
500 |
550 |
550 |
600 |
|
滑塊行程次數(次/分鐘) Strokes of slide(spm) |
22~30 |
22~30 |
20~26 |
20~26 |
|
最大裝模高度(毫米) Max. die height(mm) |
1050 |
1050 |
1250 |
1300 |
|
裝模高度調節量(毫米) Die height adjustment(mm) |
120 |
120 |
120 |
120 |
|
導軌間距離(毫米) Distance between gilbs(mm) |
1010 |
1100 |
1180 |
1320 |
|
滑塊底面尺寸 (毫米) Slider bottom size(mm) |
前后F.B |
950 |
1050 |
1200 |
1300 |
左右L.R |
1200 |
1300 |
1400 |
1550 |
|
工作臺板尺寸 (毫米) Bolster area(mm) |
前后F.B |
1200 |
1200 |
1300 |
1400 |
左右L.R |
1200 |
1300 |
1400 |
1550 |
|
上頂料 Downward ejector |
行程(毫米) stroke(mm) |
/ |
/ |
80 |
80 |
頂料力(千牛) Power(KN) |
/ |
/ |
120 |
160 |
|
下頂料(機械) Upward ejector (mechanical) |
行程(毫米) stroke(mm) |
130 |
130 |
150 |
150 |
頂料力(千牛) Power(KN) |
800 |
800 |
1200 |
1500 |
|
主電機功率(千瓦) Main motor power(KW) |
110 |
132 |
160 |
200 |
|
壓機外形尺寸 (毫米) Overal dimensions(mm) |
前后F.B |
3990 |
4325 |
3950 |
4250 |
左右L.R |
5810 |
6010 |
5000 |
5250 |
|
壓機地面以上尺寸(毫米) Height above floor(mm) |
6960 |
7340 |
7380 |
7720 |
